ASA-PVC glazed roof tile production line is also known as ASA-PVC resin tile production line，PMMA-PVC roof tile production line，plastic synthetic tile production line. This machine can continuously extrude two-layer, three-layer, four-layer high-quality ASA/PMMA-PVC glazed tiles through 2-3 extruders combined co-extrusion technology.
Surface ASA or PMMA material: super weather-resistant resin to ensure the durability and chemical corrosion resistance of the product;
Base PVC material: white tough material, which can increase the sense of space and brightness of the factory.
This product can effectively prevent product aging, is durable, fireproof and crack-proof, easy to install, and green and environmentally friendly.

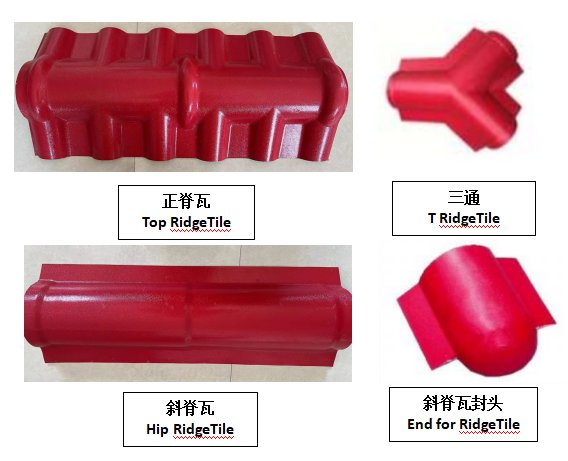

This production line also includes ridge tile production machines, which can produce ridge tiles.
Technical parameters for ASA/PMMA-PVC glazed roof tile production line
Tile Layers | 1-LAYER | 2-LAYER | 3-LAYER | 4-LAYER |
Extruder Spec. | SJSZ80/156 | SJSZ80/156+ SJ50 | SJSZ80/156+ SJSZ65/132+ SJ50 | SJSZ80/156+ SJ80/156+ SJ50 |
Raw Material | PVC | ASA OR PMMA +PVC | ASA OR PMMA +PVC | ASA OR PMMA +PVC |
Tile Width(mm) | 880/1050 | 880/1050 | 880/1050 | 880/1050 |
Tile Thickness(mm) | 2-4 | 2-4 | 2-4 | 2-4 |
Max Output(KG/H) | 350 | 350 | 350 | 350 |
